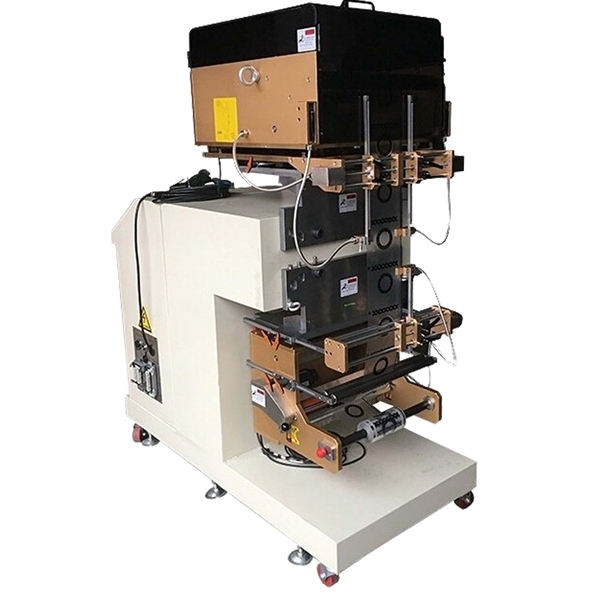

IMR In-Mold Decoration By Roller Technology

  • Min.Order Quantity: 1 set
  • Warranty: 1 year
  • Port: Shenzhen
  • Product Detail

    Product Tags

    IMR In-Mold Decoration By Roller Technology

    Applications:

    Commonly known as in-mold transfer, the pattern is printed on the film in advance, then introduced into the injection mold, and automatically conveyed and positioned by the foil feeding machine. The plastic part is injected into the mold to engage the diaphragm, have the printed pattern on the diaphragm to be transferred to the plastic part you need. Injection and printing are completed simultaneously.

    Suitable for home appliance industry such as air conditioning panel, washing machine panel, car interior, 3c, remote control, mobile phone case, etc.

    Features:

    1. Low cost advantage when produce large quantity.

    2. Injection and heat transfer complete at a same time.

    3. It can achieve pearlescent effect, metallic luster effect, matte effect, electroplating effect, leather effect, etc.

    4. Adopt Taiwan HIWIN guide rail with high precision sliding block, Taiwan TBI ball screw, guarantee stable operation.

    5. Tension control system constantly monitors film output, ensures transfer foil bearing homogeneous tension, better parallelism, and more stable production.

    6. Adopts imported optical fiber sensors, equipped with Mitsubishi servo motor to revise deviation of film, intelligent coordinate the position of film up and down, left and right. High precision and fast speed.

    7. Imported portable touch screen, make the operator easily debug in the mold, improve the efficiency and accuracy of the machine.

    Specifications:

    Model LP-IMR 250 LP-IMR 330 LP-IMR 460 LP-IMR 660
    Voltage 220V 220V 220V 220V
    Power 1.5KW 1.5KW 1.5KW 1.5KW
    Diameter of film roll 250MM 250MM 250MM 250MM
    Max. width of film 250MM 330mm 460mm 660mm
    Suitable for IMR on air conditional, electrics, 3C products and other flat part.
