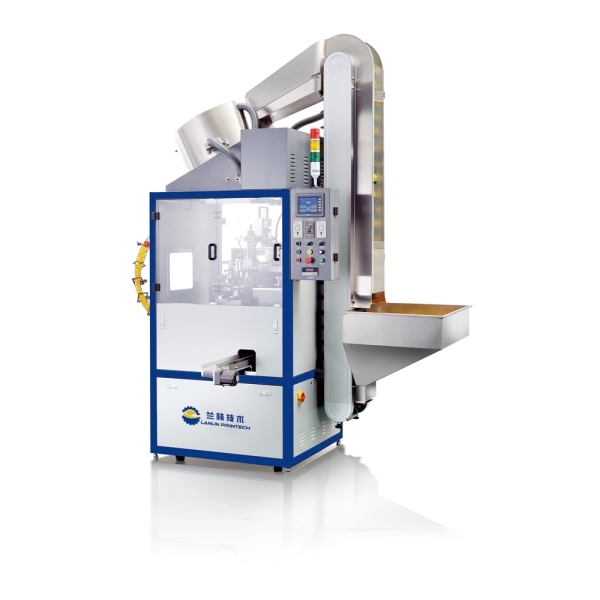

LP-F103 Fully Automatic Single Color Screen Printing Machine

  • Min.Order Quantity: 1 set
  • Warranty: 1 year
  • Port: Shenzhen
  • Delivery time: 30 days
  • Product Detail

    Product Tags

    Applications:

    It is mainly used for round surface printing. Such as bottle lids, tubes, cups. The innovative transmission system is very steady in passing the bottles, easy to shift between different types of bottles. Easy operation, fast and efficient printing.

    The printing object can be made of plastic or metal.

    2_副本

    1_副本

    Features:

    1. Equipped with unscrambler, automatic infeed and outfeed product.

    2. PLC and Touch screen make the operation fast, simple and stable.

    3. Core parts are from German, USA and Japan to ensure the machine quality and stability of printing.

    Parameters:

    Printing speed: 3600-4200 Pieces/hour

    Printing size: Φ15-Φ60mm, Length 20-200mm

    Compressed air pressure: 6-8 Bar

    LPG: 1.5 Bar

    Machine size: L 2800*W 2600*H 2900mm

    Power: AC 380V, 3-Phase, 50Hz/60Hz, 3Kw
