Applications:

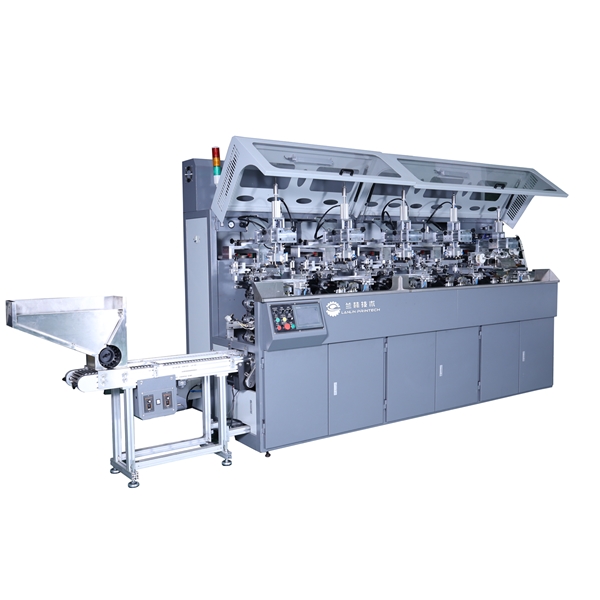

Fully automatic chain-type multicolor screen printing machine are mainly used for cylinder printing without positioning point，achieve multicolor printing.

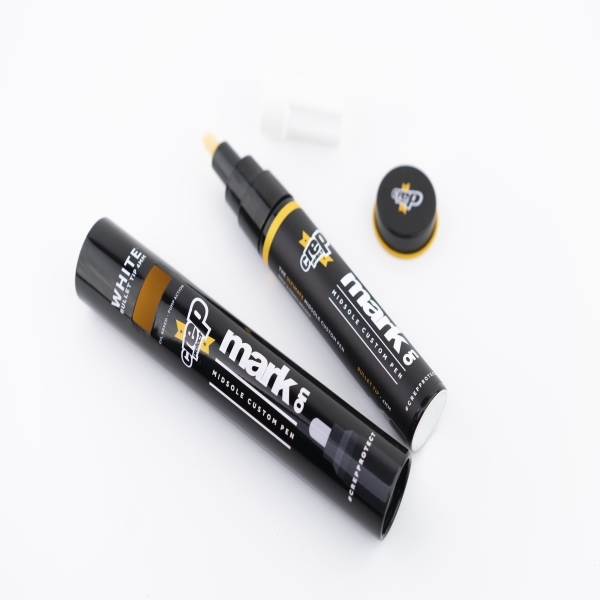

The printing objects can be made of plastic, metal or glass etc. Such as bottle lid, lipstick, pen sleeves, tubes, perfume bottles.
Features:
1. It adopts chain style structure, all stations and parts are driven synchronously. Maximum 5 colors can be printed. Optional integration of different processing i.e. screen printing, hot stamping.
2. Controlled by PLC and touch screen display, with kinds of monitor system to ensure the machine running stable and safe at high speed.
3. Equipped with unscrambler, automatic infeed and outfeed product, automatic register.
Parameters:
Printing speed: 3000 Pieces/hour
Printing size Cap diameter: Φ15-34mm, length 25-60mm
Bottle dia Φ20-65 mm, length 25-150 mm
Compressed air pressure:6-8 Bar
LPG: 1.5 Bar
Dimension： L 2250*W 1360*H 2280mm
Power: AC 380V, 3-Phase, 50Hz/60Hz
