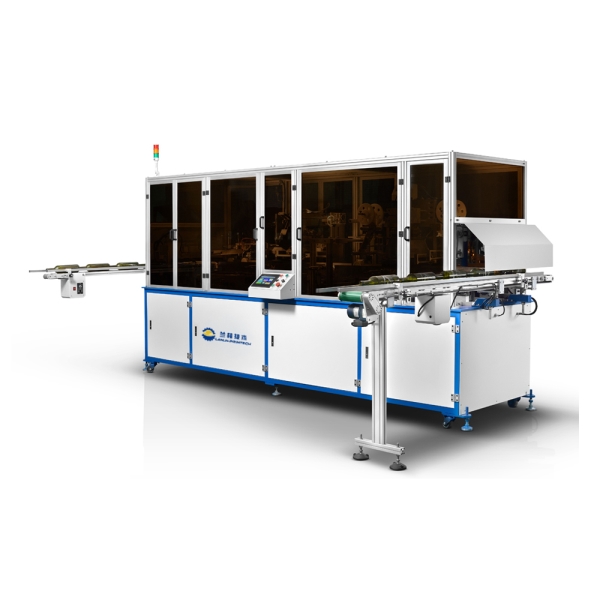

Applications:
It can be used to do screen printing and hot stamping different pattern and word on cylindrical and square object.
For example, wine glass bottle, liquor glass bottle, drinking glass bottle, soy sauce glass bottle, glass jars, glass tubes, other glass containers and so on
Features:
1. Adopt mechanical chain-style to transfer bottles. Simple structure, easy operation, low maintenance, accurate register, high automation, fast printing.
2. Mechanical register and visual mark register can be achieved. Colour to colour register accuracy.
3. Controlled by PLC and touch screen display, with kinds of monitor system to ensure the machine running stable and safe at high speed.
4. Equipped with functions, such as:
Automatic horizontal infeed and outfeed of article;
Orientation;
Antistatic dust device;
Flame pre-treatment;
Automatic pre- and main register;
No article no print;
Conventional UV or LED UV curing system.
5. Optional integration of different processing i.e. hot stamping unit and varnishing.
6. Famous electrical parts are used from Taiwan, France, German, USA and Japan to ensure the machine quality and stability of printing.
Parameters:
Printing speed: 1200 Pieces/hour (depending on article shape, size and print image, infinitely adjustable)
Printing area: Φ30-90mm, Height 80-220mm
Compressed air pressure: 6-8 Bar
Machine dimension: L 3400*W 1200*H 2200mm
Power: AC 380V, 3-Phase, 50Hz/60Hz, 10Kw(conventional UV), 6Kw(LED UV)
