Applications:
Pad printer is widely applied in many industries including toys, plastic, electronic, glass, metal, electrical appliances, ceramics, die-casting products, optical, sporting goods, stationery, etc.
For example, rulers, pens, golf balls, ping-pong, eyes of doll, cap of bottle, watches, cameras, ceramic, pharmaceutical and medical equipment, rackets, tapes, electronic components, IC, CPU, DRAM, keyboard, mouse, cell phone shell, decorative signs, etc.
Features:
Microprocessor operation system, electro-pneumatic control, simple operation using touch panel.

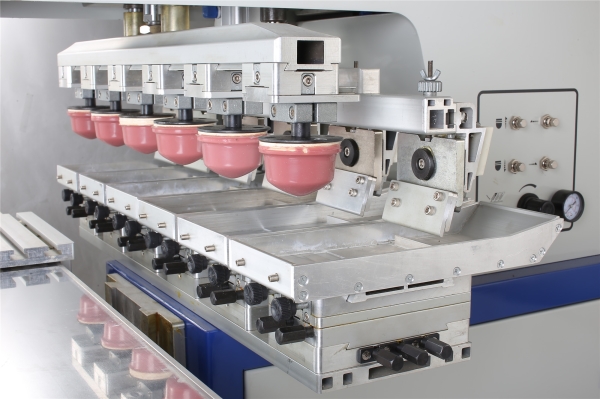

200mm working stroke, ink cup and ink basin design.
Programmable up and down, forward and rear stroke.
X, Y, R steel plate adjustment, worktable X/Y/Z/R adjustment.
Heavy-duty construction with cabinet.
Stable, durable working and fine workmanship.
Foot pedal operation for single cycle.
Installed safety guard and emergency stop button (optional).
PLC and touch screen display, servo motor shuttle are optional.
Complying with CE safety standards.
Specifications:
Model |
LP-200B-6S |
LP-200C-6S |
Ink system |
Ink basin |
Ink cup |
Plate size(mm) |
200*100 |
300*100 |
Ink cup size(mm) |
○ |
ID82*OD90 |
Working table |
Shuttle |
Shuttle |
Max. print speed |
680 Pieces/hour |
|
Driven |
Pneumatic |
|
Air pressure |
5-6 bar |
|
Control system |
12V PCB board or PLC with touch screen |
|
Voltage |
110/220/230V 50/60HZ |
|
Weight(kg) |
280 |
280 |
Machine dimension(L*W*H mm) |
1020*1000*1450 |
