Introductions:

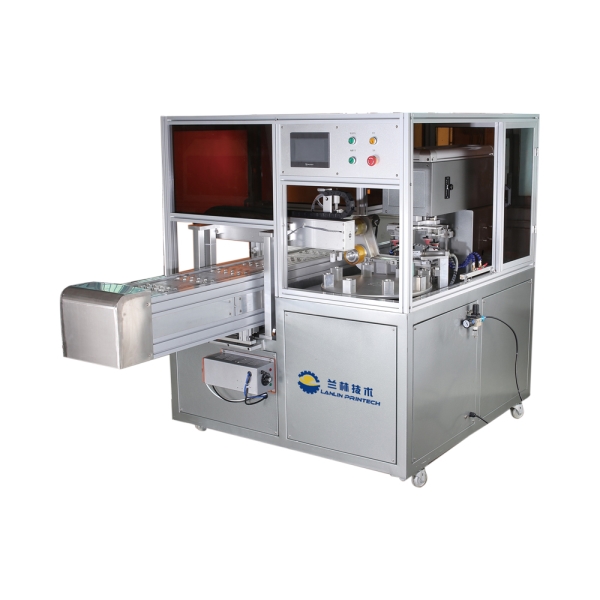

LP-500C-8R Pad printing machine with index rotary working table is equipped with high accuracy servo motor driven synchronous robot, rotation printing pad and auto tape pad cleaning device.
It features a cam indexer driven rotary table with 8 stations, a programmable touch screen control panel and all functions can be easily programmable from there. The unloading robot and unloading conveyor working synchronous increase print output.
It is suitable for the small hardware parts, plastic parts and electrics in high accuracy printing.
Features:
PLC and touch screen display controls all the movements.

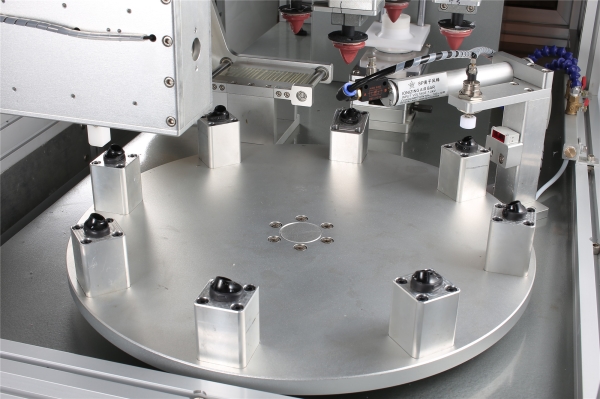

Cam indexer driven rotary table to increase output.

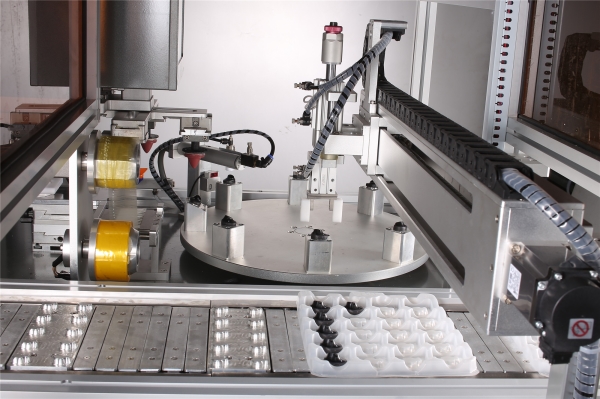

Servo motor driven unloading robot
Ink cup base with X/Y/R adjustment.

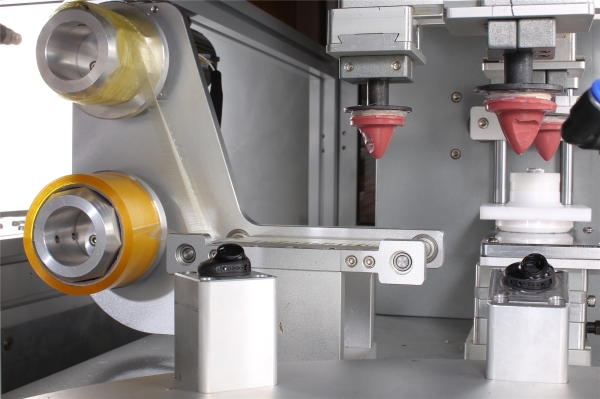

Automatic tape pad cleaning device.
Smooth and quite machine performance.
Specifications:
|
Model |
LP-500C-8R |
|
Driven method |
Pneumatic-Electric |
|
Control system |
PLC with touch screen |
|
Ink system |
Ink cup |
|
Plate size(mm) |
200*100 |
|
Max. print size(mm) |
40*40 |
|
Pad stations |
4 Pads |
|
Working table |
8 Stations rotary table |
|
Max. print speed |
100-1300 Pieces/hour |
|
Air pressure |
5-6 bar |
|
Voltage |
110/220/230V 50/60HZ, 2kw |
|
Weight(kg) |
600 |
|
Machine dimension(L*W*H mm) |
2200*1350*1650 |
