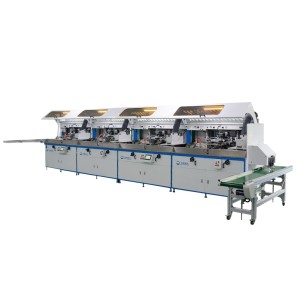

LP-F102-M Fully Automatic Universal Screen Printing Machine For The Decoration Of Cylindrical, Oval and Flat Plastic Containers

Applications:

It is suitable to print different kinds of round, oval, flat objects. It is widely applied to the printing of cosmetic container, baby bottle, medicine bottle, drinking bottle, lubricating oil bottle, glass silicon tube, pen sleeve, ceramic, etc.

Features：

1. Controlled by OMRON PLC & HMI for simple operation, operating panel with “multi-information-display” for operator guidance, error display.

2. Basic mechanical equipment.

3. The innovative transmission system is very steady in passing the bottles, easy to transport different types of bottles from left to right, easy to operate.

4. Main drive motor with frequency converter for infinitely variable machine cycles, constant machine speed and quick-stop in case of timing-off or emergency-off.

5. Fast start/stop of the machine.

6. Machine can be equipped with automatic loading and unloading system, unscrambler, orientation, antistatic device, flame pre-treatment, automatic pre- and main register.

7. Main components are from France, German, USA and Japan to ensure the machine quality and stability of printing.

8. Automatic squeegee blocking – no article, no print –.

9. Pneumatic squeegee pressure setting.

10. Print station with article rotation via rack and pinion.

11. Article transport tracks with central adjustment for different bottle lengths.

12. UV curing system, or LED drying device, or hot air curing aggregates.

13. Modular, extendable system design. It can be connected up to maximum 6 colors by one master machine and modular machines. Each modular machine is synchronous driven, accurate registration via bottle bottom hole for multi colors, stable and reliable performance.

Specifications:
